I have been wanting a welding table from Certiflat for YEARS. I can’t remember just where I first saw them. I finally had the space and the budget to get one this year.
It comes in pieces. A flat top, laser drilled with 5/8″ holes every 2″. There are also slots cut into the top where the tabs on the support ribs fit into.

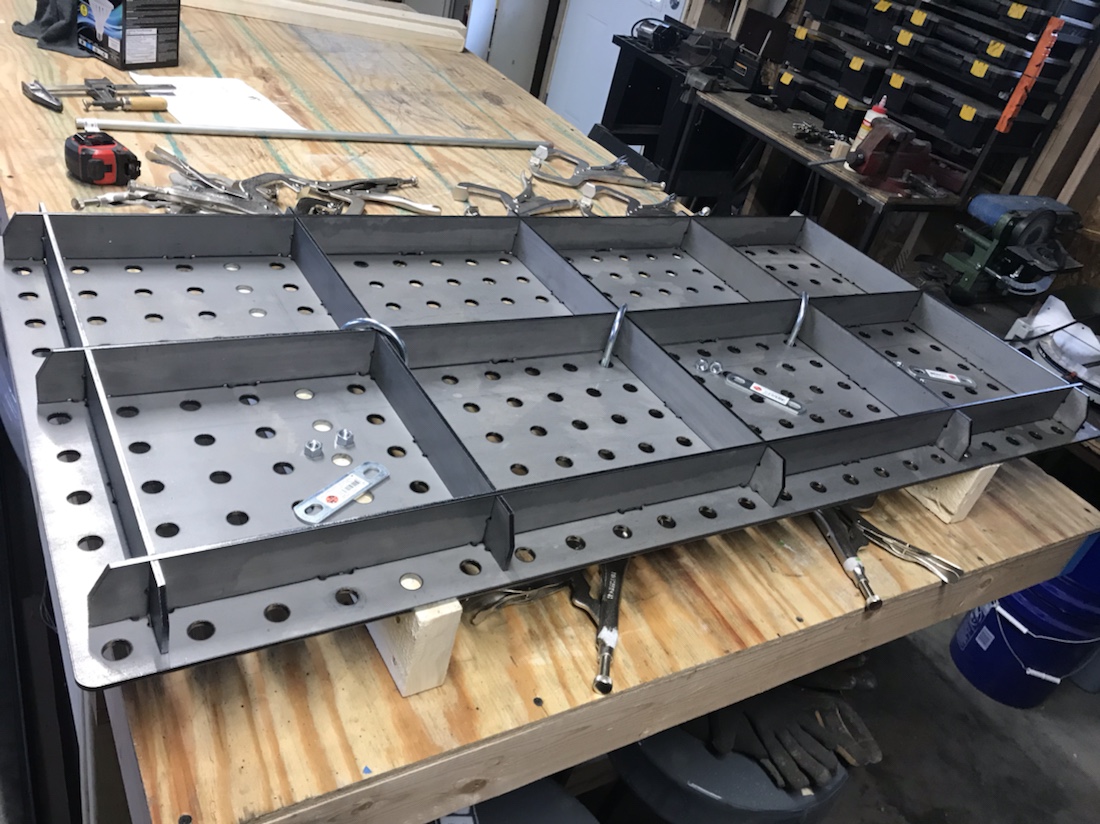

You start the build upside down, clamping the ribs to the top piece. You have to clamp it down completely to ensure the top comes out flat.

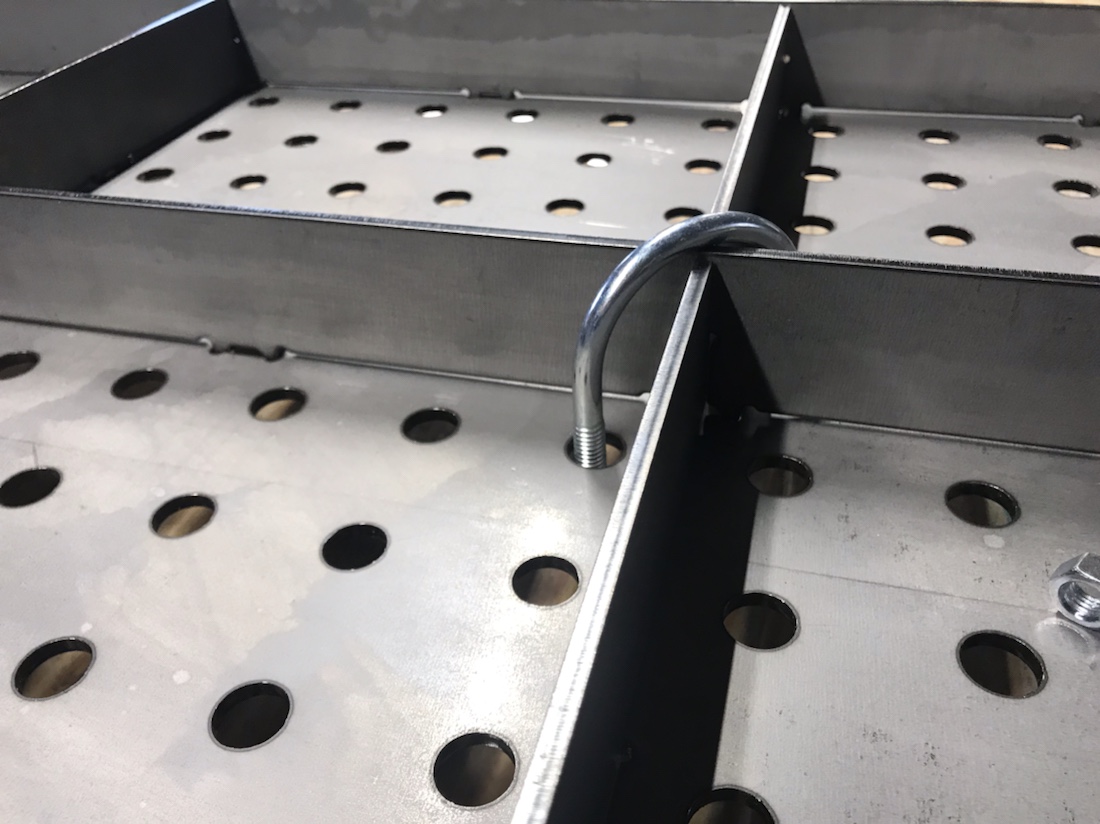

I used u-bolts to clamp down the center pieces.
I used the MIG to tack weld the center parts of the ribs together and to the table top. and then added more clamps to the outsides of the ribs.

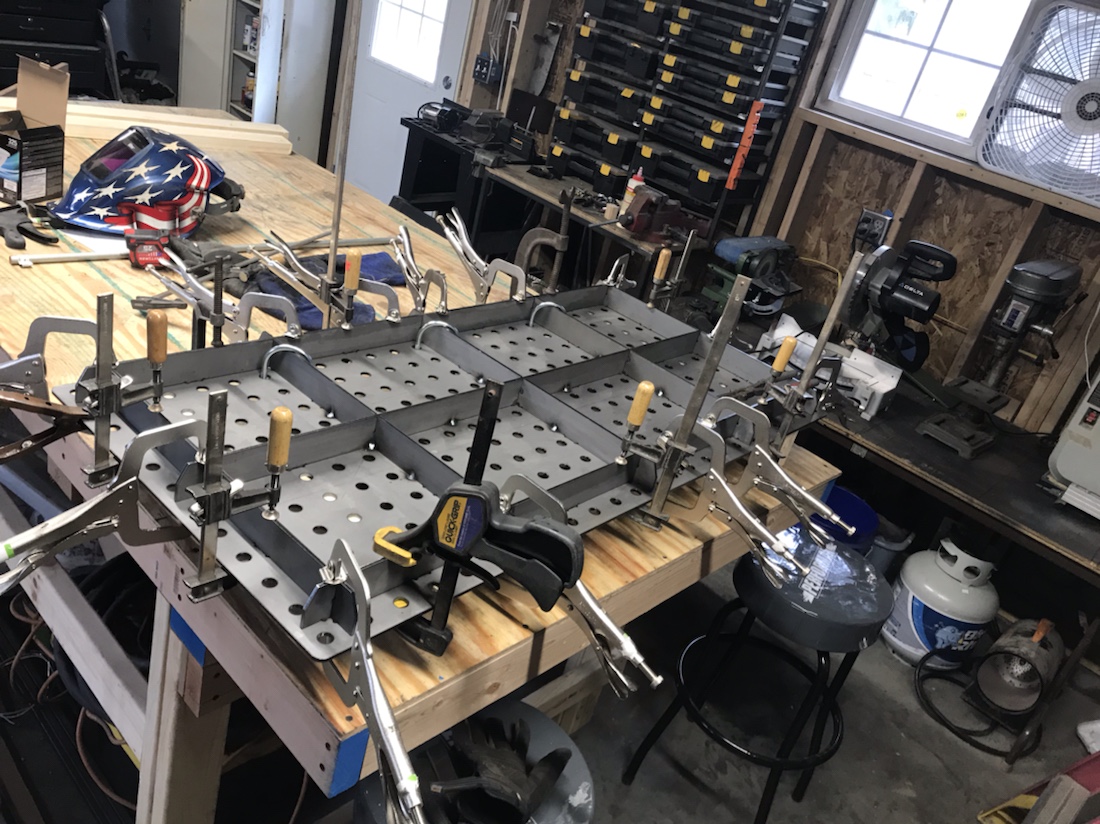

A lot of clamps. You can never have too many. I used a flashlight to make sure there was no space between the ribs and the top, shining it on the side opposite to where I was standing, making sure I saw no slivers of light come under neath the rid.

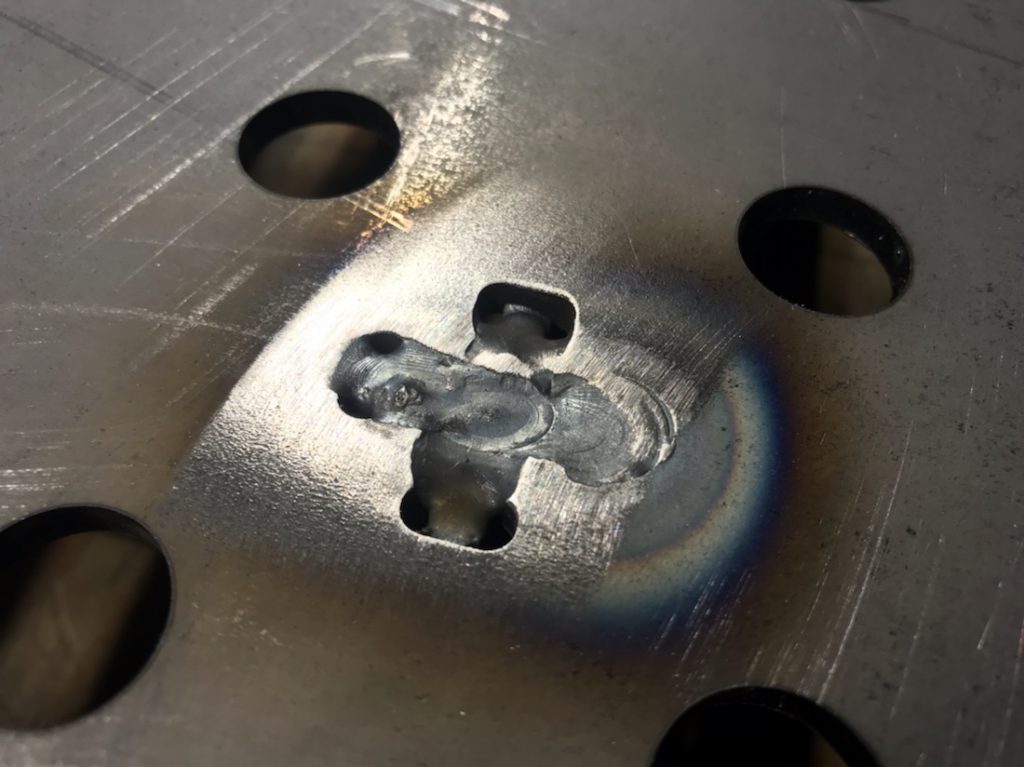

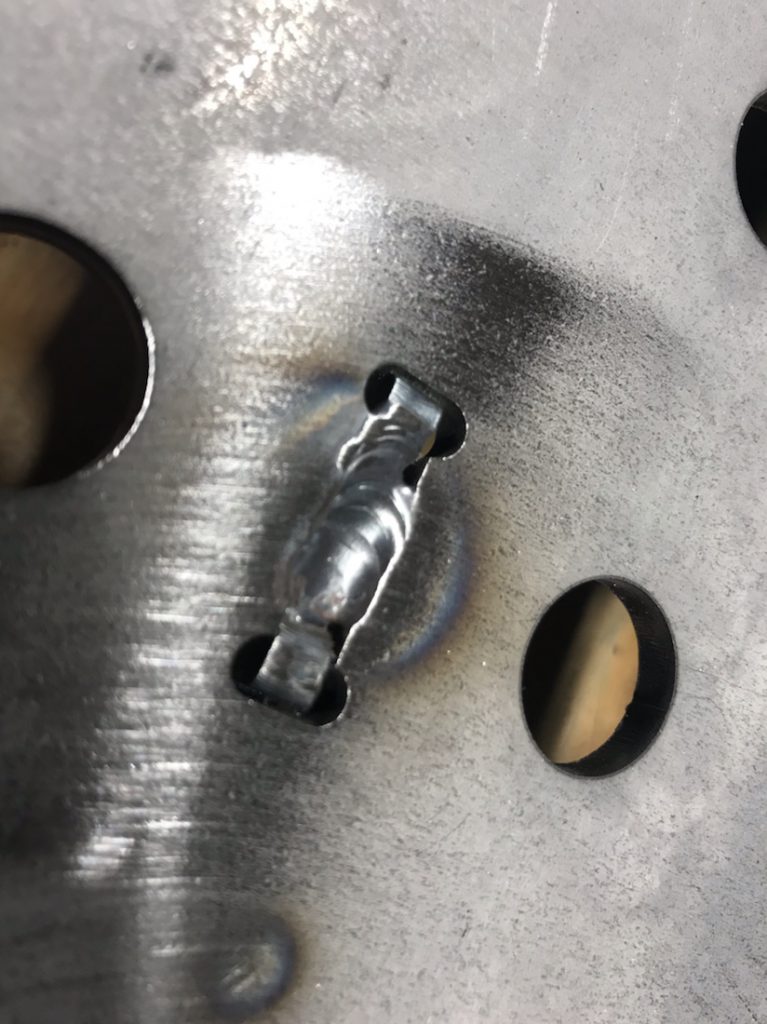

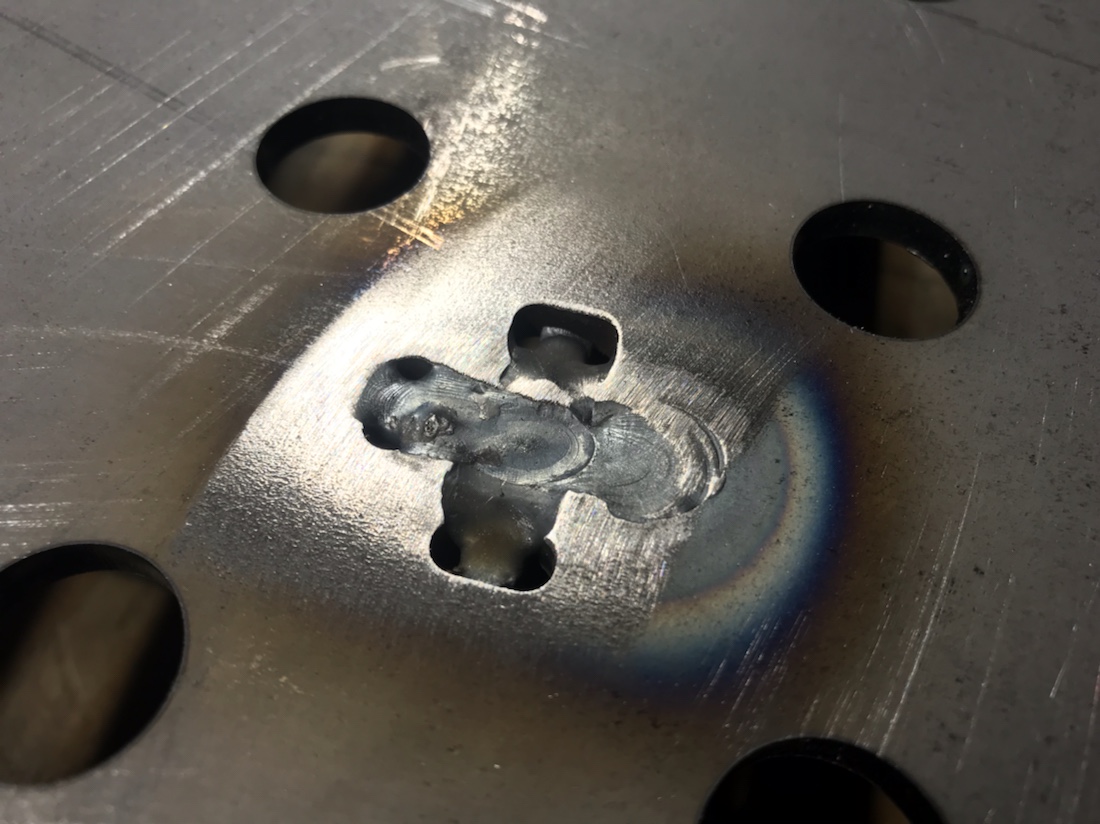

Once it was completely tacked together, I turned it over and used the TIG welder to complete the welds of the tabs and slots.
My TIG welding still needs practice, but that’s part of what this table is for. I’m debating on if I will finish welding the ribs below. I don’t think it really needs it.
The legs I ordered with this table haven’t been shipped yet. Once those are in, I’ll be able to complete this project.
UPDATE: Leg kit arrived.
